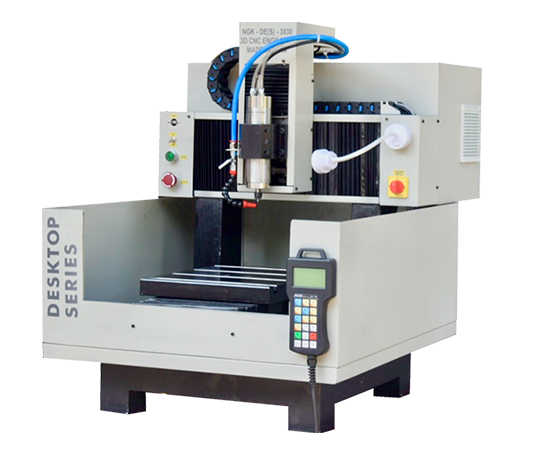

Double Column Desktop Series

Ball Screw

LM Guide

Proximity Sensor

Machine Highlights

Compact Desktop Machine with very less floor space required. Time Proven, Sturdy and Versatile Digital CNC Micro-Milling/Engraving Machine

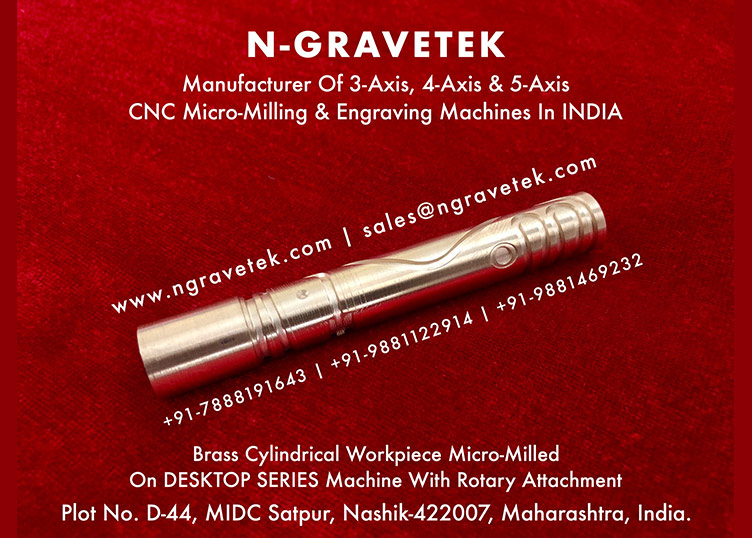

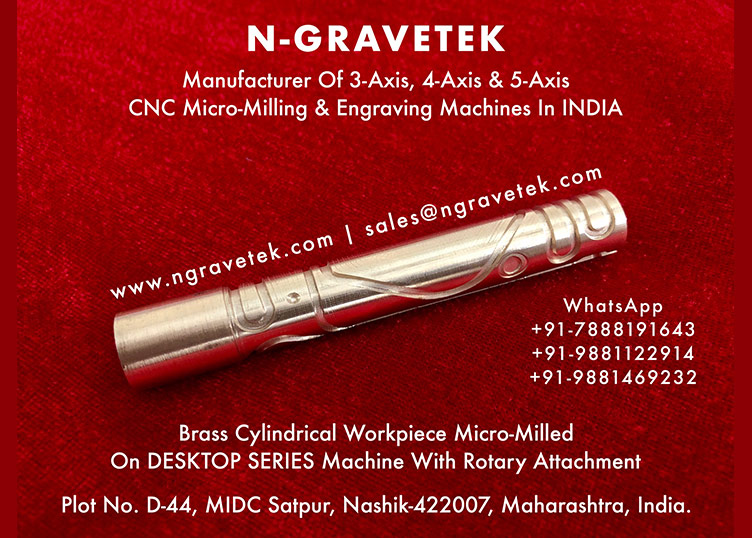

Machine future ready for 4th axis for doing Micro-Milling & Engraving operations on cylindrical work piece.
Most economical yet powerful CNC engraving machine in our product line.
Specially designed for Micro-Milling & Engraving operations.
Cast iron foundry desktop machine with virtually no vibrations which gives better surface finish & better tool life.
Closed loop control system with possibility to save 6 work origins.
Standalone machine with USB compatibility. No need to connect PC.
DSP based programmable multi-axis simultaneous 3-axis controller which uses standard G-ode NC file type input.
Ball Screw with LM guide-ways enable higher rapids and better productivity. D Easy to operate using simple & user friendly handheld keypad.
Compatible with broad range of CAM softwares.
Broke Motor used for dynamic balancing of Z-Axis.
Single phase connectivity enables minimum power consumption.

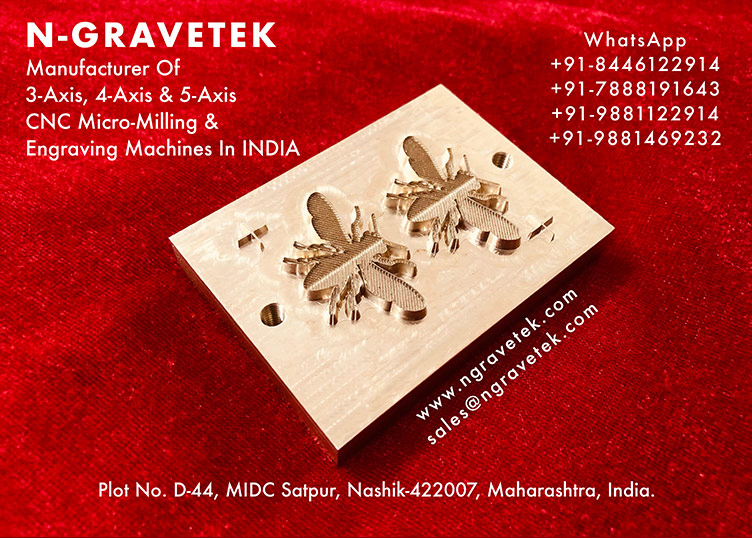

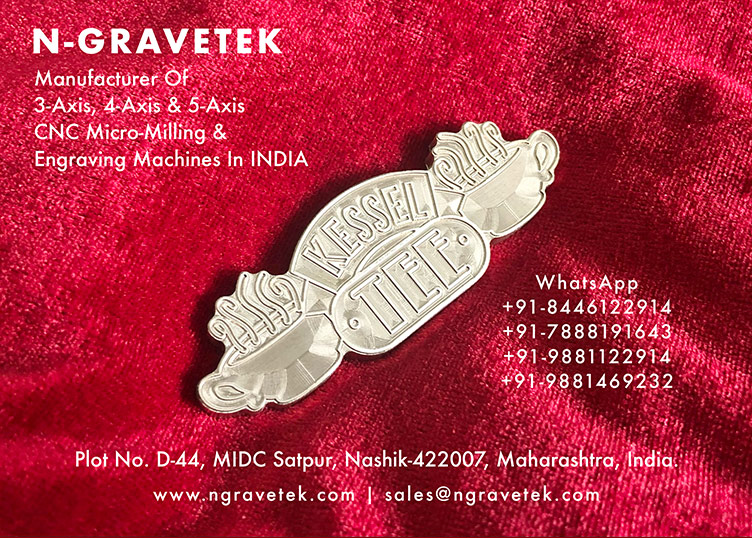

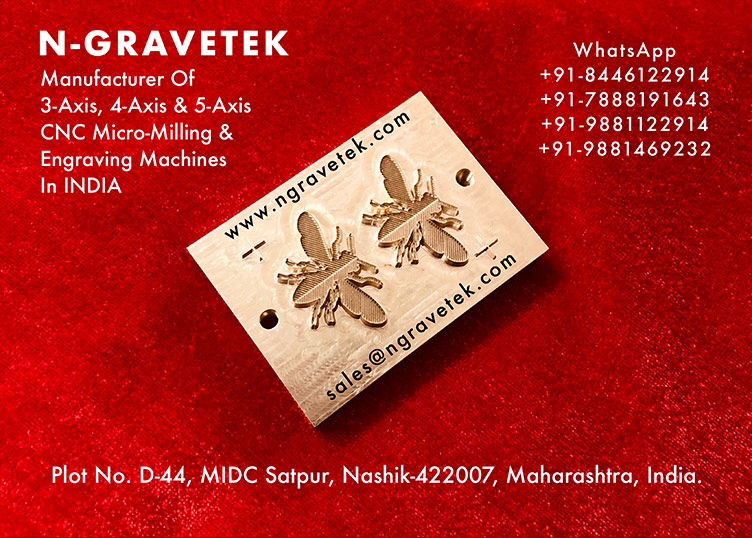

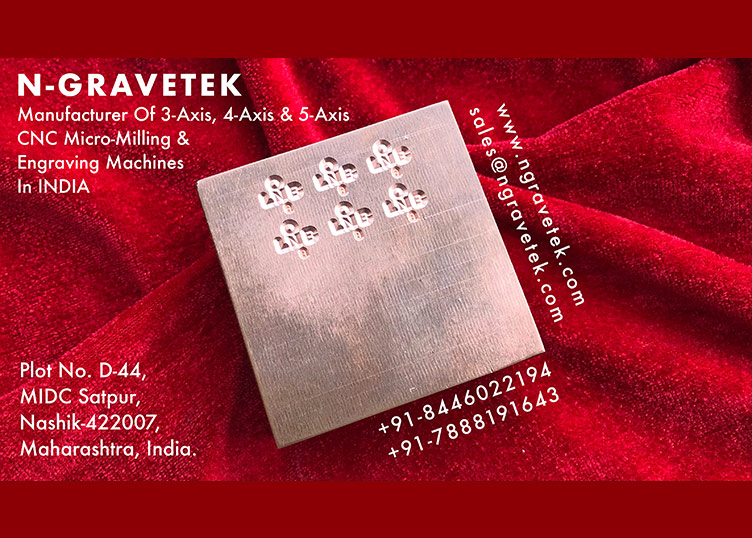

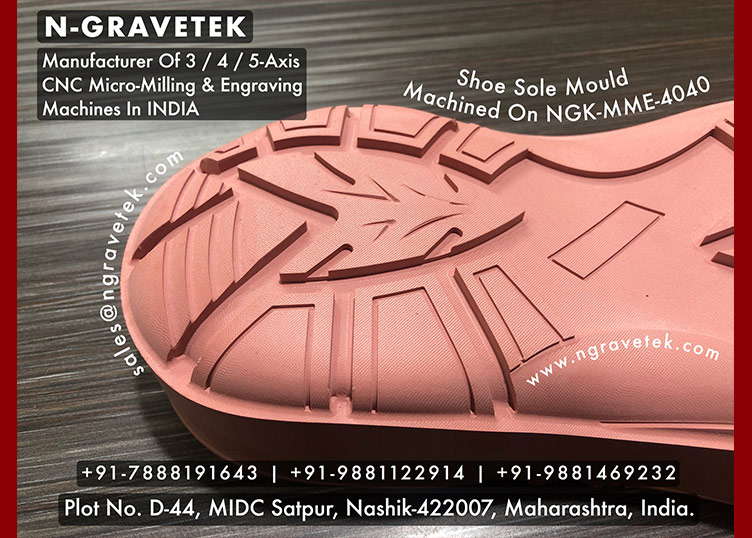

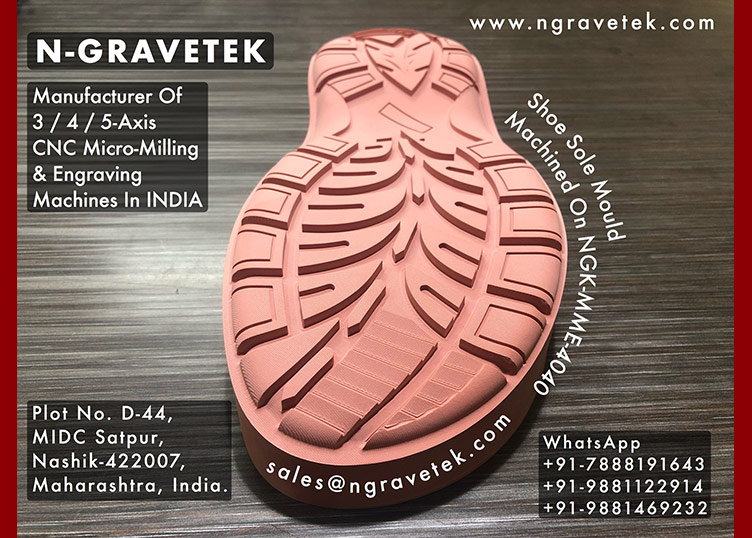

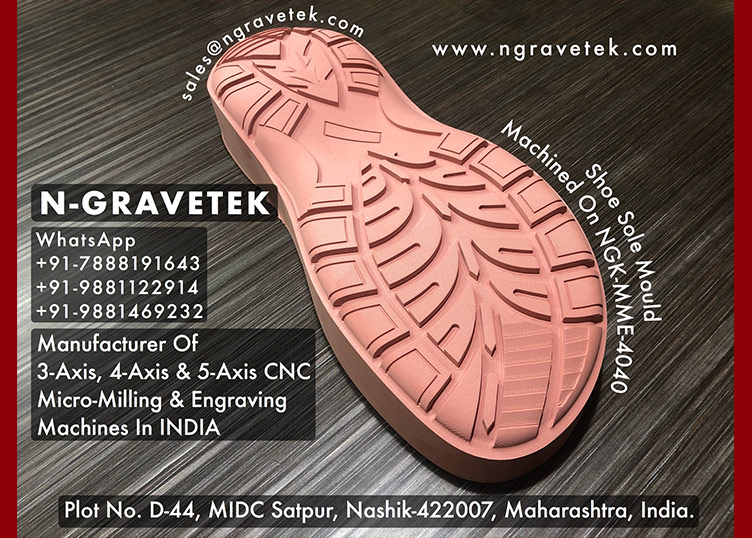

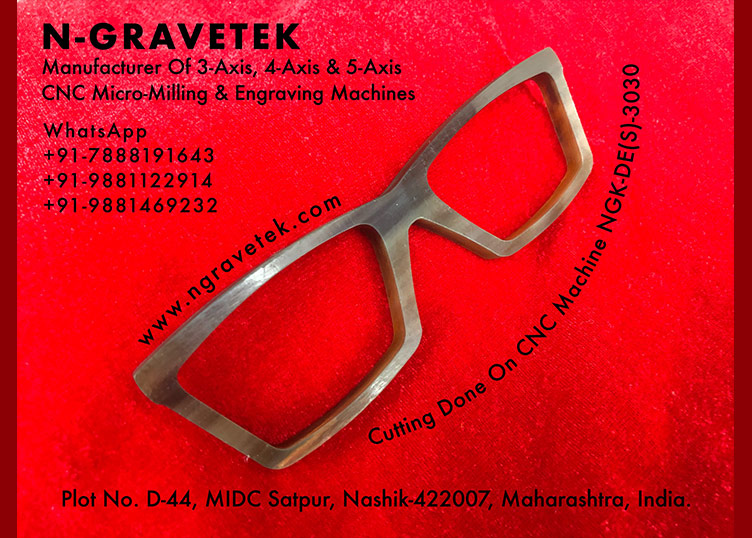

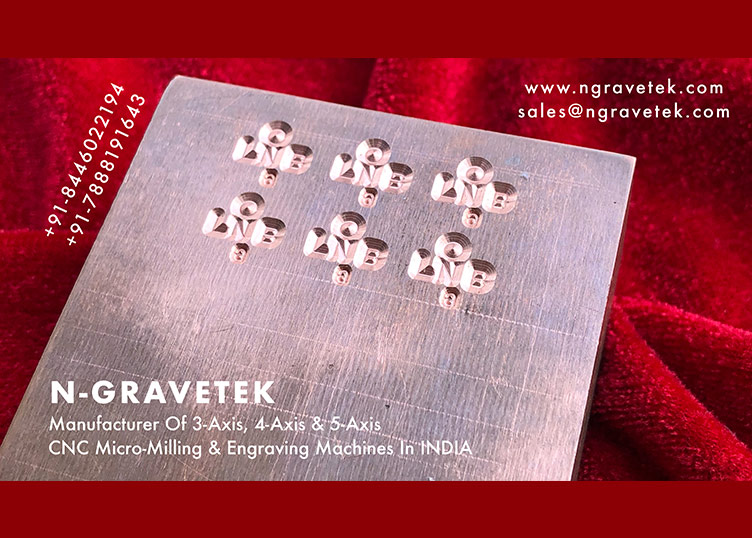

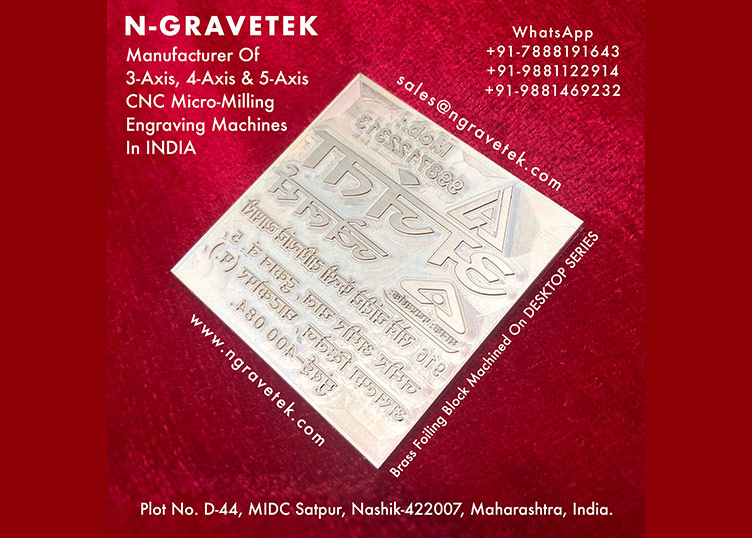

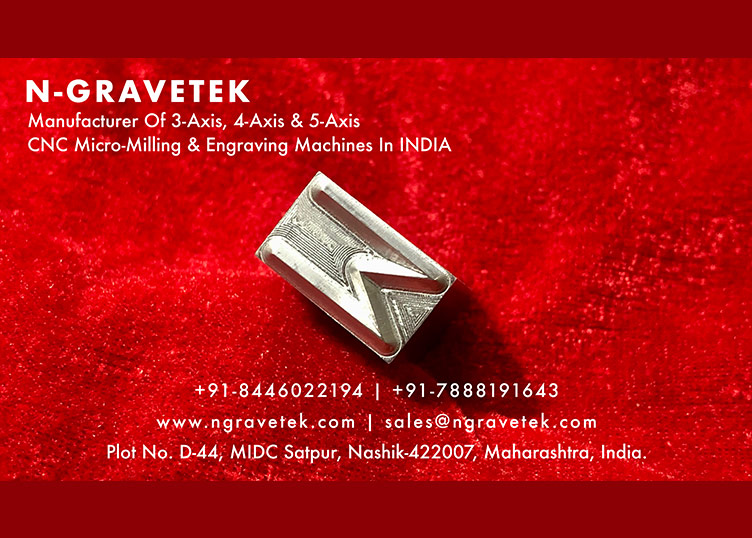

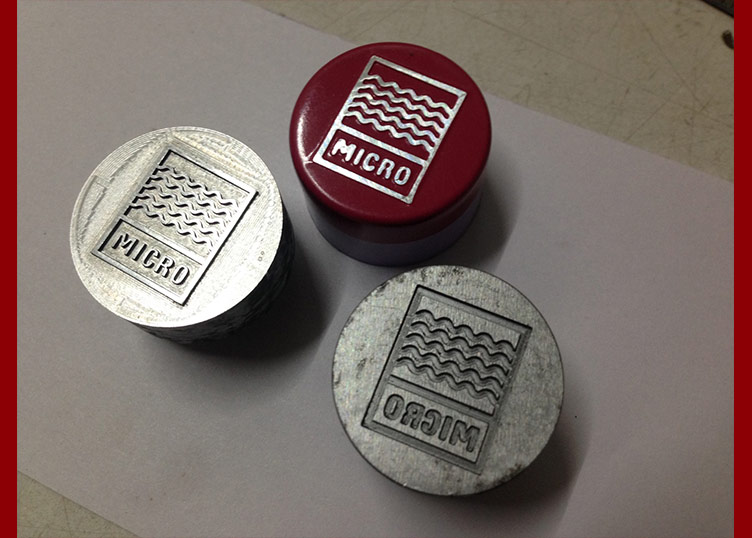

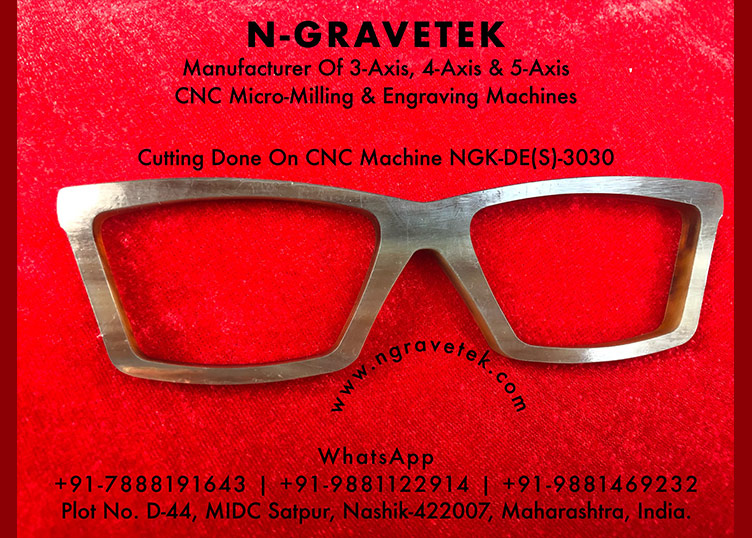

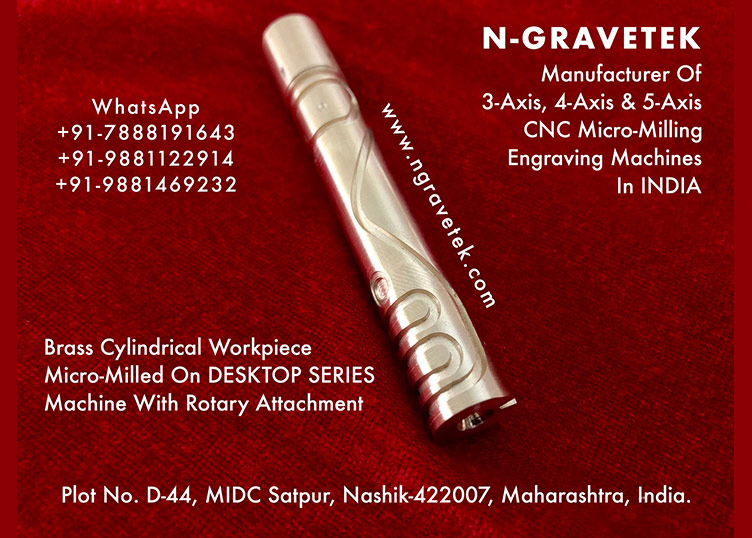

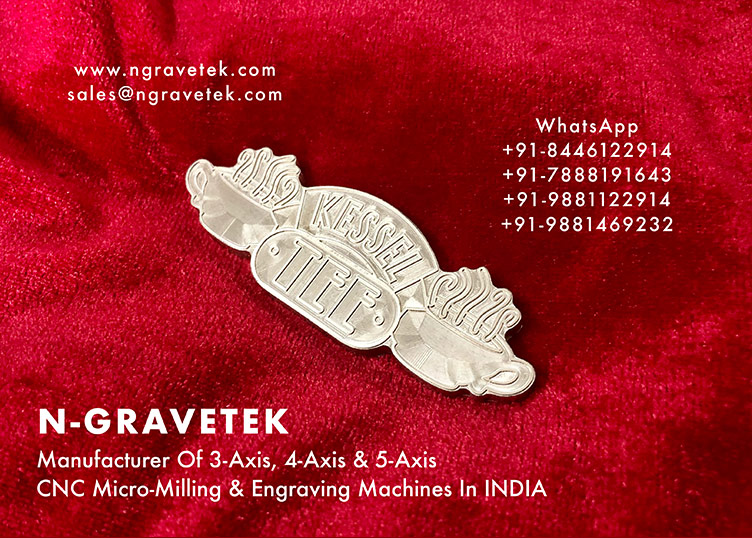

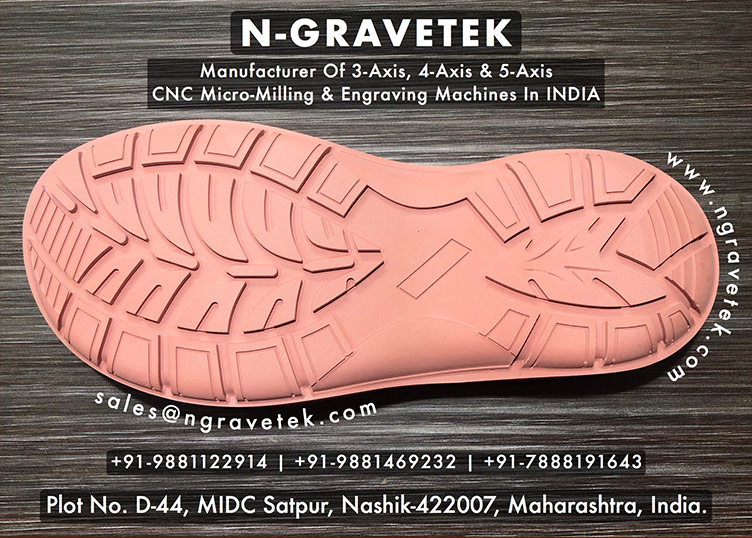

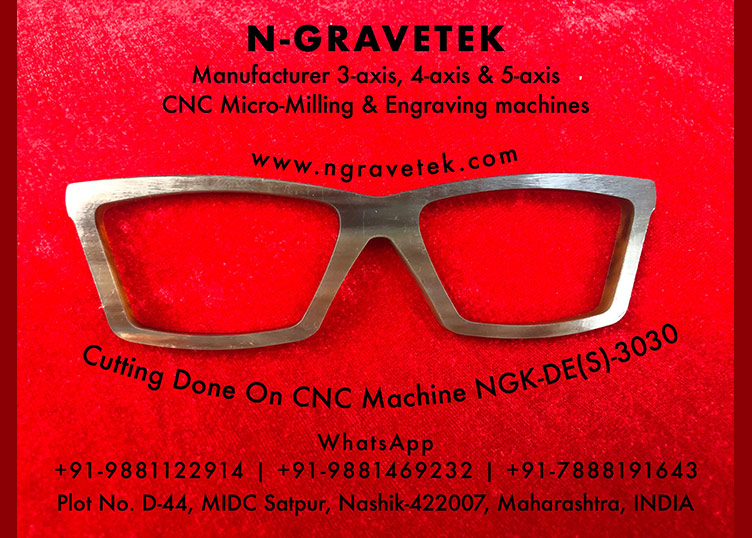

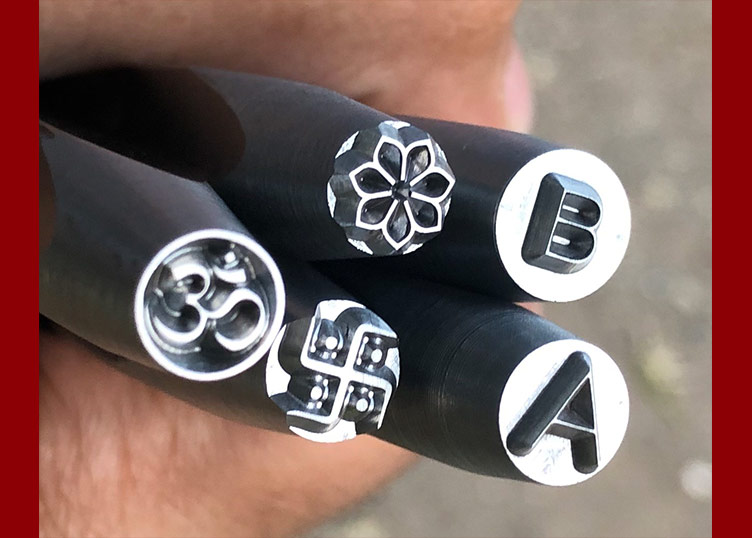

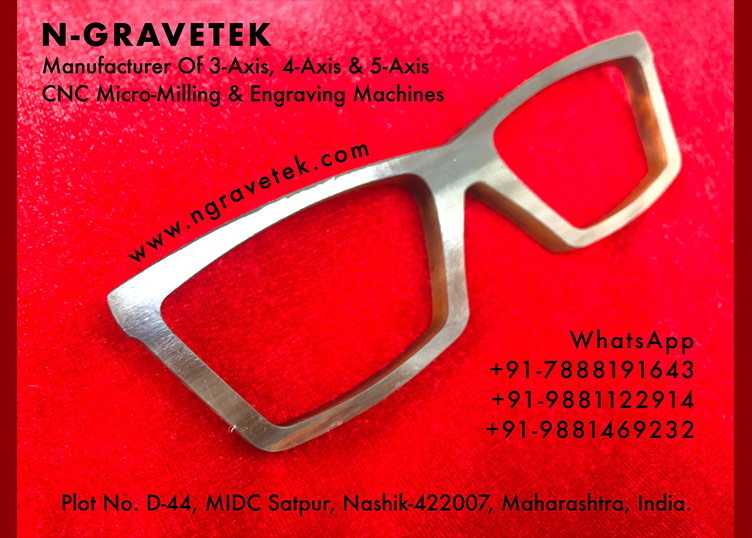

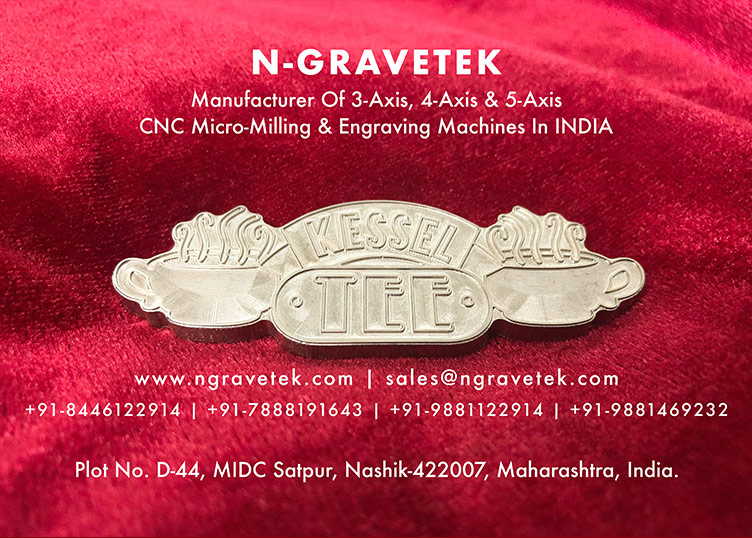

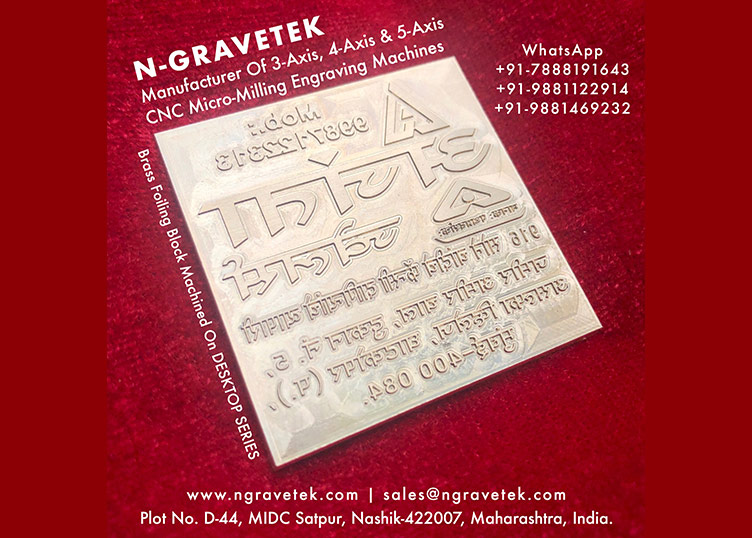

Product Video Technical Specs Sample Images
Download Catalog

Machine Technical Specifications

Description	NGK-DE/DE(S) 3030	NGK-DE/CE(S) 4040	NGK CE/DE(S) 6040
Working Area – (X) x (Y) x (Z) (mm)	300 x 300 x 60	400 x 400 x 60	600 x 400 x 60
Total Size- Clamping Area in mm	325(X) x 375(Y)	4250 x 475M	62500 x 475)
T-Slot Size	M10
T-Slot Centre Distance	104mm	113mm	133mm
Engraving Speed	2000mm/min
Rapid Speed	3000mm/min
Spindle Speed	40000
Spindle Power	1.2KW
Maximum Tool Diameter	6mm (Soft Materials) & 4mm (Hard Materials)
Guide System	Linear Motion Guide
Drive System	Ball Screw
Motor/Drive	Stepper Motor/Servo Motor
Standalone Controller	(DSP) Digital Signal Processor
Internal Memory	128MB
Expandable	8GB
USB Connectivity	YES
Machine Self Zero	YES
User Work Zero	6
Auto Spindle On/Off	YES
Auto Coolant On/Off	YES
ToolBreak Point Resume	YES
Power Resume Function	YES
NC File Format	ISO G-Code (Standard)
Accuracy	0.020mm
Repeatability	0.020mm
Resolution	0.015mm (Stepper Motor)/0.010mm (Servo Motor)
Feeding Height	150 MM (Customisable)
Safe Weight on Table	80 Kg	100Kg	120Kg
Weight of Machine	400 Kg	500 Kg	650 Kg
Floor Space (mm)- (L) x (D) x (H)	750 x 1000 x 850	850 x 1050 x 850	1050 x 1050 x 850
Operating Tempreture	5 to 35 Degrees

Standard Accessories

Names	Nos
Clamping Set	2 Nos
Spanner (Required Sizes Only)	2 Nos
Collet (4mm)	1 Nos

Upgraded Accessories

Spindle Power 2.2KW @ 24000RPM
PC Based Controller
Suitable PC Required for PC Based Controller
Integrated System Embedded

Optional Accessories

Coolant System
Industrial Spindle Chiller
Z-Presetter - Calibrator
4" (Width) 4" (Openning) Milling Vice
2" (Width) 3" (Openning) Precision Vice
Stabiliser 10 Min Power Back UPS
Rotary Axis/4th Axis Attachment.
V-Bit-Engraving Tools
Tool Grinding M/C (Training @ Nasik Works)
