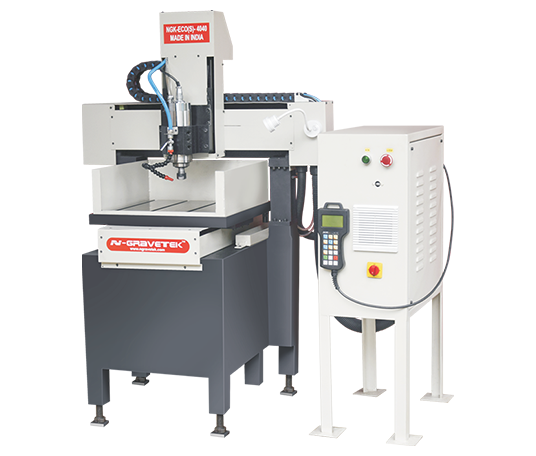

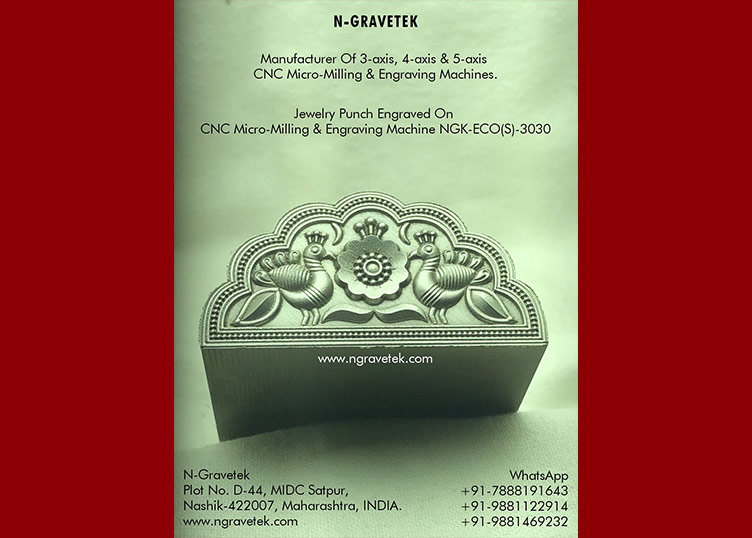

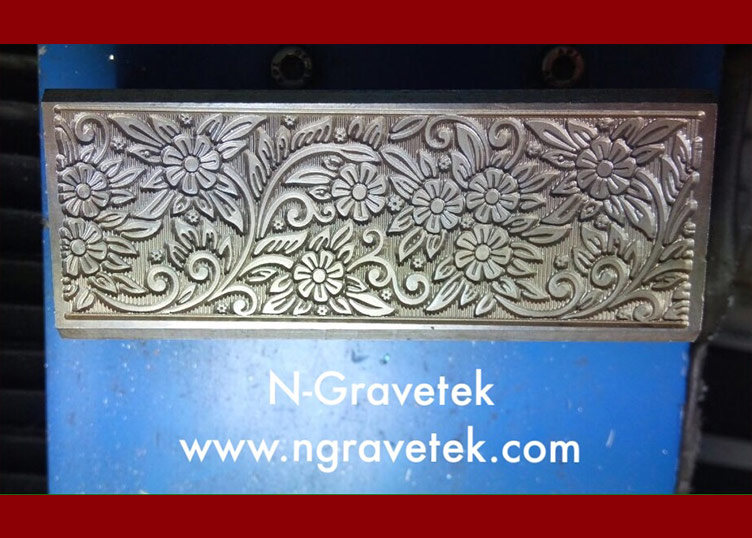

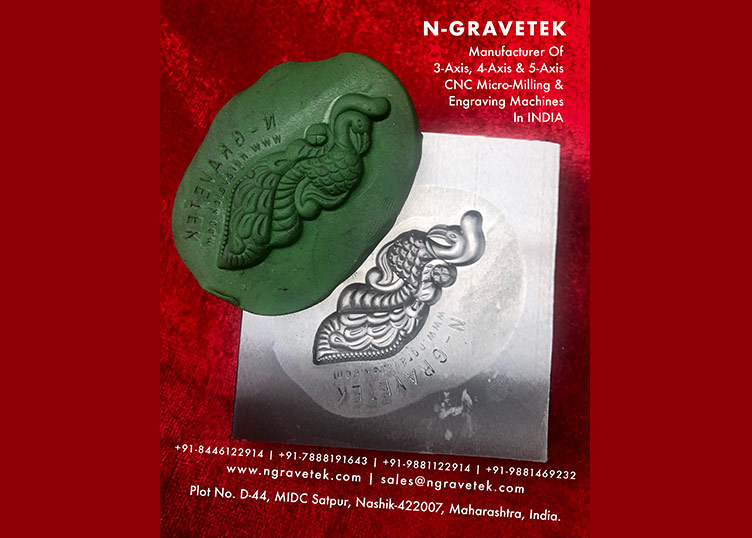

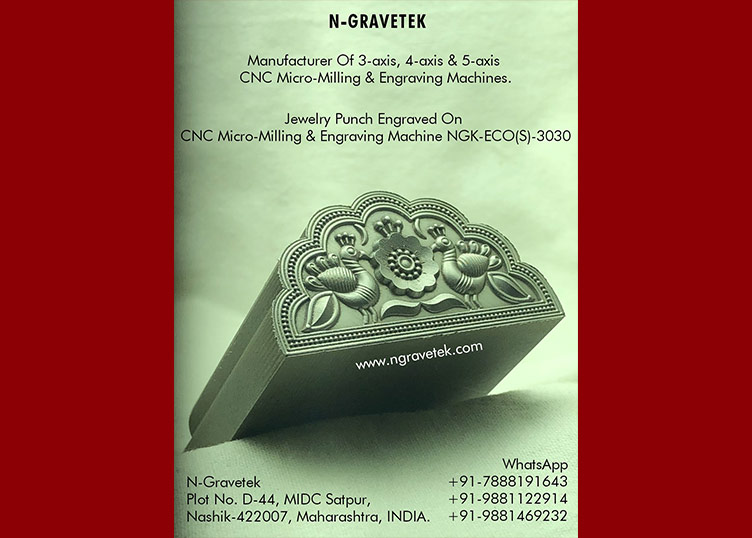

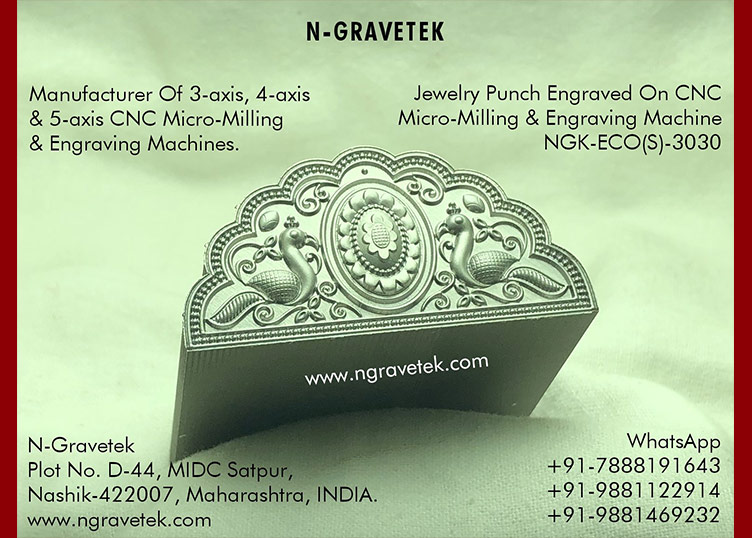

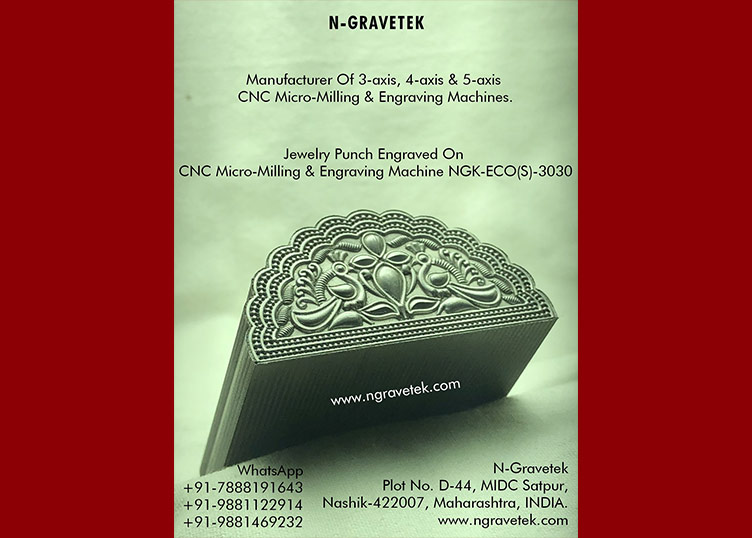

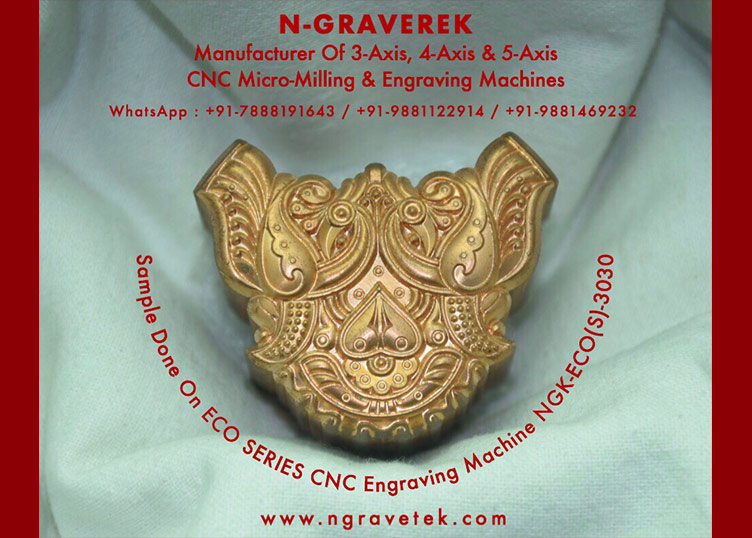

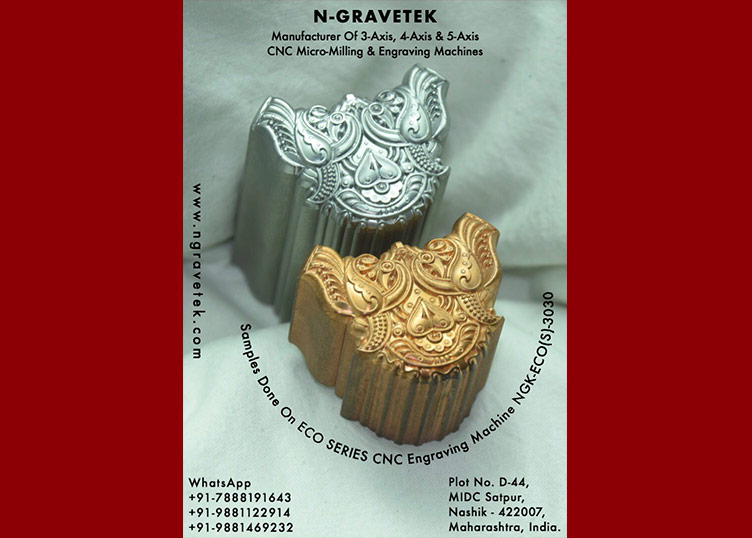

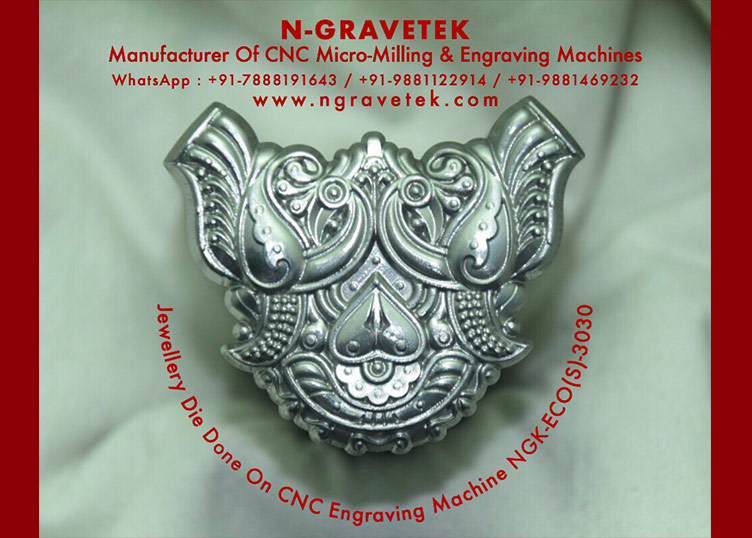

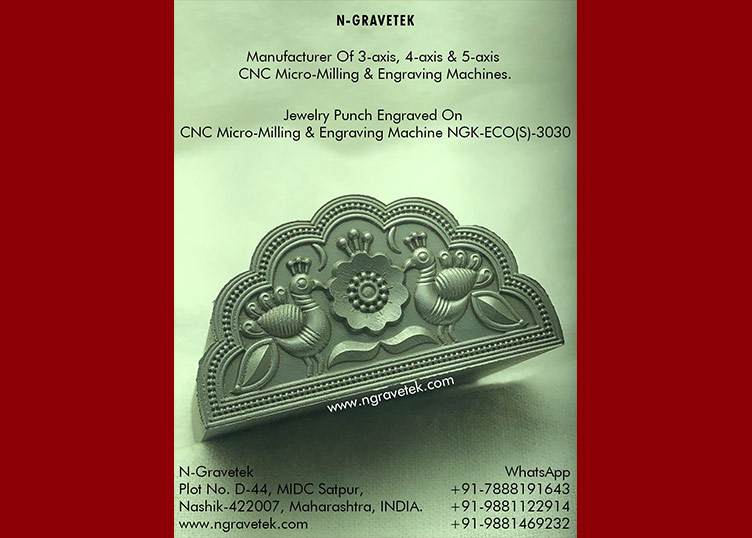

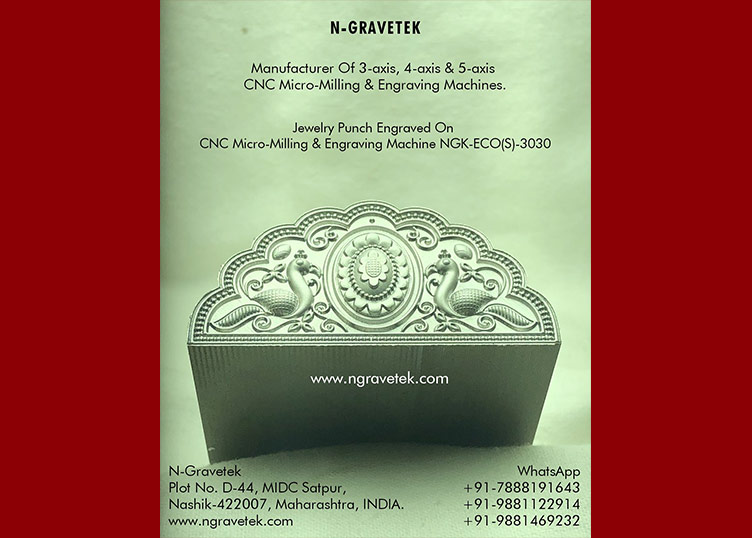

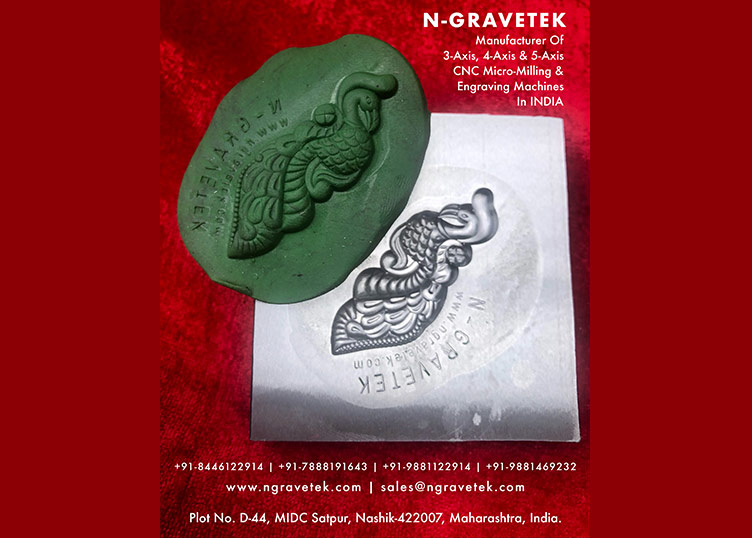

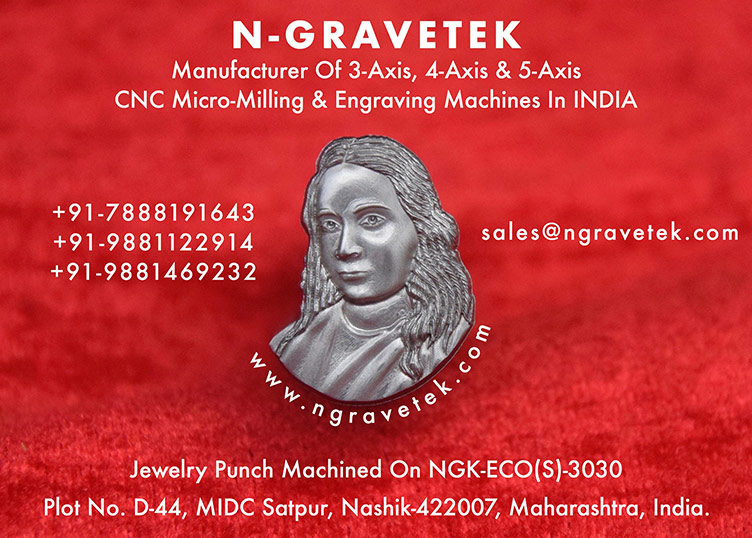

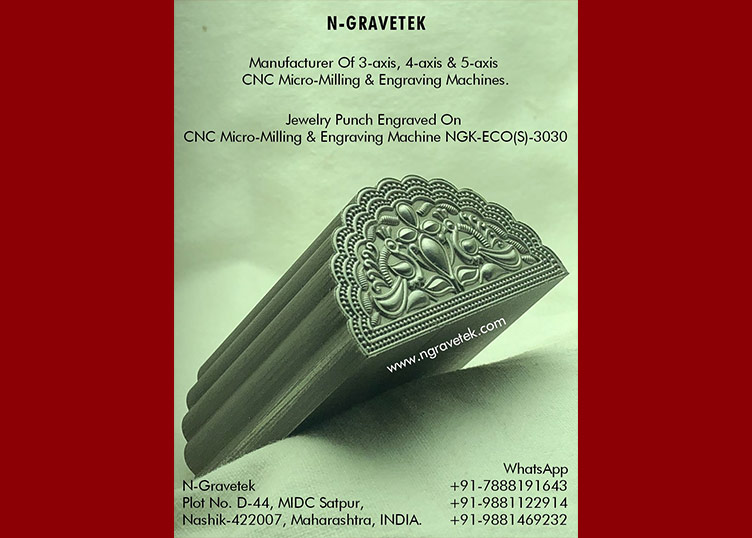

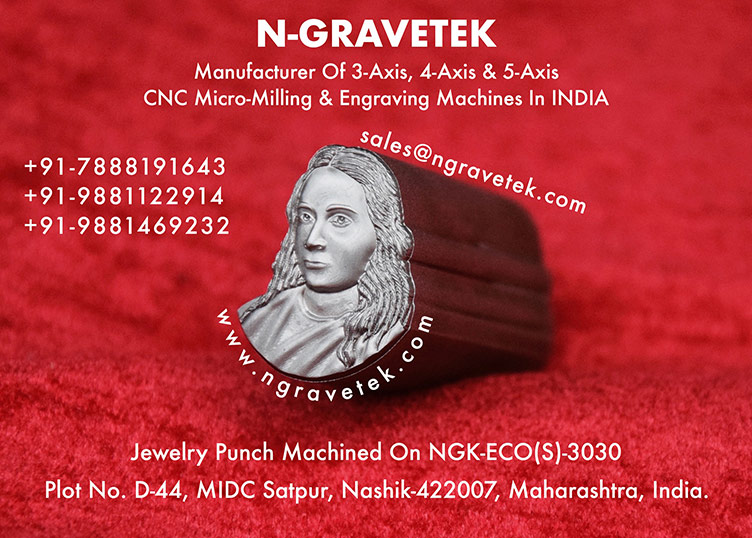

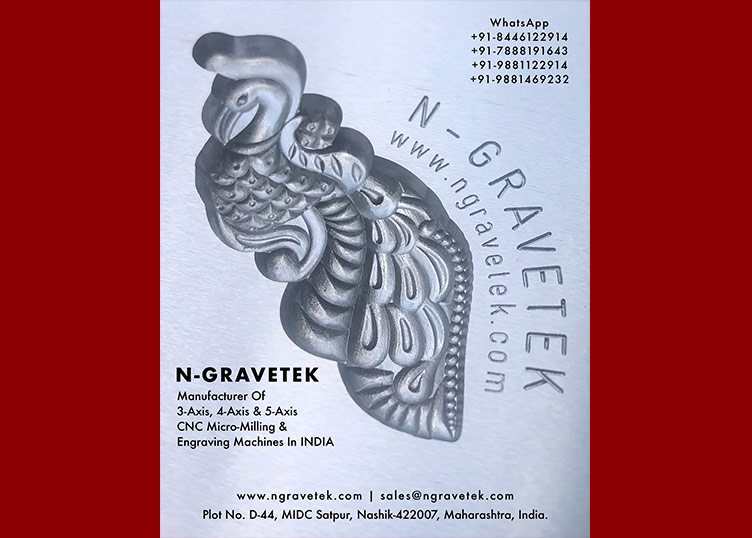

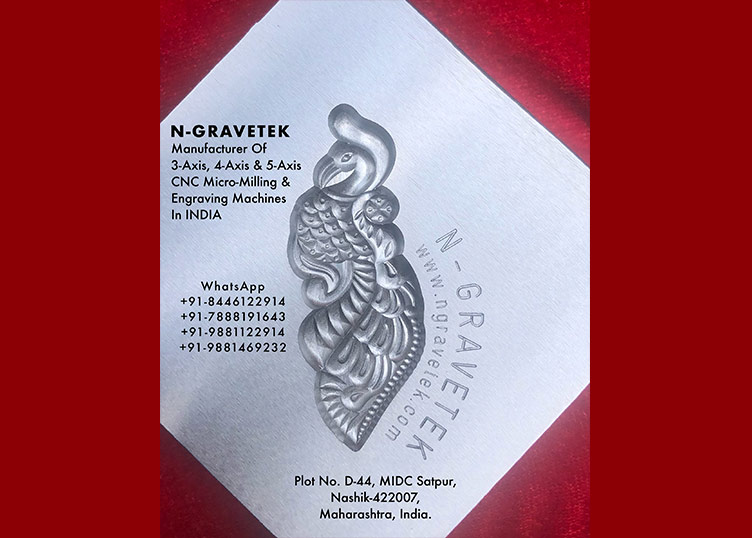

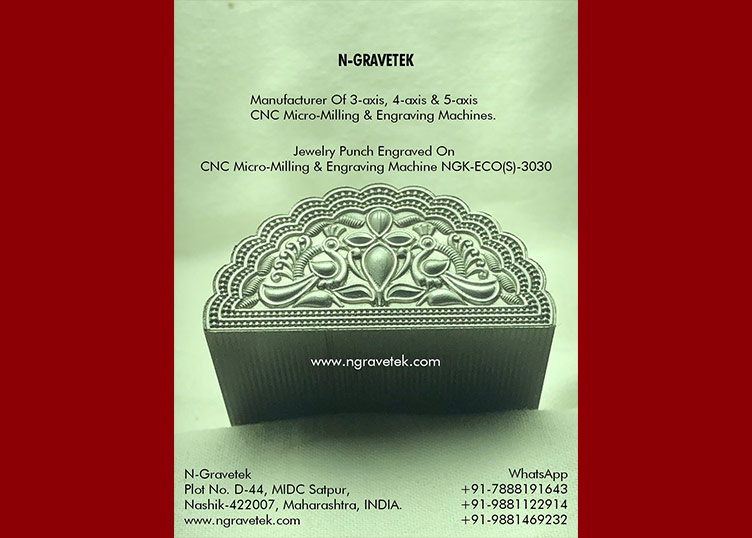

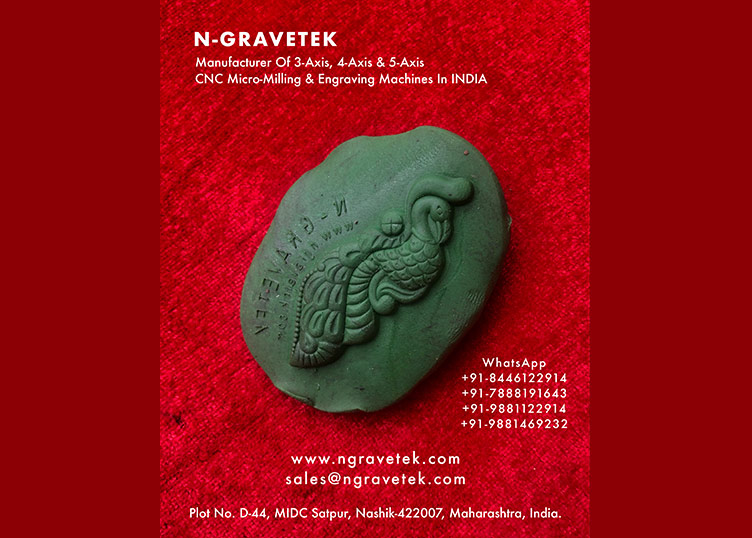

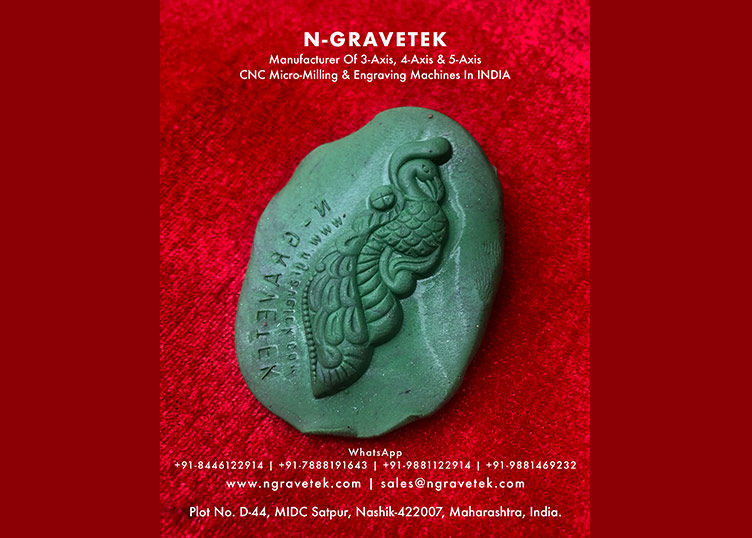

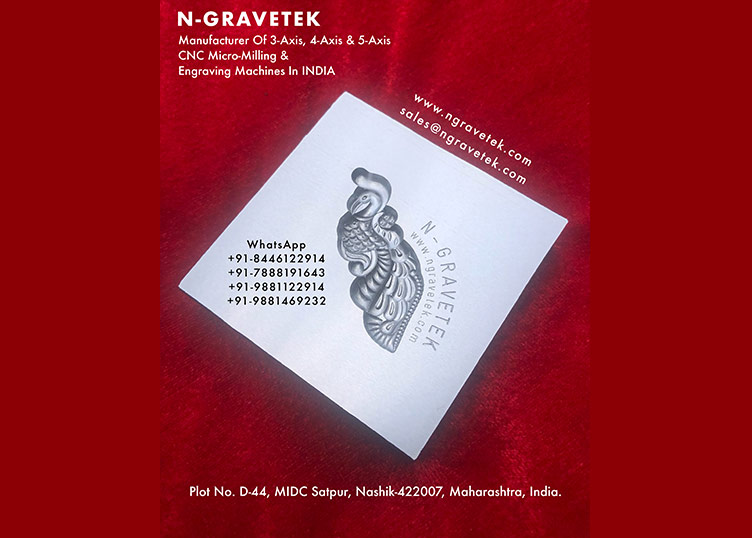

ECO Series Machine Highlights
- Time Proven, Sturdy and Versatile Full Digital CNC Precision Micro-Milling/Engraving Machine. Machine future ready for 4th axis for doing Micro-Milling & Engraving operations on cylindrical work piece.
- Most economical yet powerful CNC engraving machine in our product line.
- AC servo motor & drive for all 3-axis.
- On power failure, machine resumes from some point where it stopped
- Specially designed for Micro-Milling & Engraving operations
- Cast iron foundry body with virtually no vibrations which gives better surface finish & better tool life.
- Closed loop control system with possibility to save 6 work origins
- Standalone machine with USB compatibility. Not necessary to connect with PC.
- DSP based programmable multi-axis simultaneous 3-axis controller which uses stddard G-code NC file type input.
- Ball screw with LM guide-ways enable higher rapids and better productivity.
- Easy to operate using simple & user friendly handheld keypad.
- Compatible with broad range of CAM software
- Brake Motor used for dynamic balancing of Z - Axis.
Machine Technical Specifications
| Description | NGK-ECO (S) 3030 | NGK-ECO (S) 4040 | NGK-ECO (S) 6040 |
|---|---|---|---|
| Working Area – (X) x (Y) x (Z) (mm) | 300 x 300 x 100 | 400 x 400 x 100 | 600 x 400 x 100 |
| Total Size- Clamping Area in mm | 400(X) x 400(Y) | 500(X) x 500(Y) | 660(X) x 510(Y) |
| T-Slot Size | M10 | ||
| T-Slot Centre Distance | 104mm | 133mm | 103mm |
| Engraving Speed | 3000mm/min | ||
| Rapid Speed | 5000mm/min | ||
| Spindle Speed | 40000 RPM | ||
| Spindle Power | 1.2KW | ||
| Maximum Tool Diameter | 6mm | ||
| Guide System | Linear Motion Guide | ||
| Drive System | Ball Screw | ||
| Motor/Drive | Servo | ||
| Standalone Controller | (DSP) Digital Signal Processor | ||
| Internal Memory | 128MB | ||
| Expandable | 8GB | ||
| USB Connectivity | YES | ||
| Machine Self Zero | YES | ||
| User Work Zero | 6 | ||
| Auto Spindle On/Off | YES | ||
| Auto Coolant On/Off | YES | ||
| ToolBreak Point Resume | YES | ||
| Power Resume Function | YES | ||
| NC File Format | ISO G-Code (Standard) | ||
| Accuracy | 0.010mm | ||
| Repeatability | 0.010mm | ||
| Resolution | 0.005mm | ||
| Feeding Height | 150 MM (Customisable) | ||
| Safe Weight on Table | 100 Kg | 125Kg | 150Kg |
| Weight of Machine | 500 Kg | 600 Kg | 750 Kg |
| Floor Space (mm)- (L) x (D) x (H) | 1250 x 650 x 1550 | 1350 x 750 x 1550 | 1400 x 850 x 1550 |
| Operating Tempreture | 5 to 35 Degrees | ||
Standard Accessories
| Names | Nos |
|---|---|
| Engraving Tools | 5 Nos |
| Clamping Set | 4 Nos |
| Spanner (Required Sizes Only) | 3 Nos |
| Collets (6mm & 3mm) (Single Each) | 2 Nos |
| Allen Keys (Required Sizes Only) | 5 Nos |
| N-Gravetek Signature 4GB Pen Drive | 1 Nos |
| Coolant System | 1 Nos |
Upgraded Accessories
- Spindle Power 2.2 @ 24000RPM
- PC Based Controller
- Suitable PC Required for PC Based Controller
- Integrated System Embedded
Optional Accessories
- Z-Calibrator (Auto Z)
- 4" Milling Vice
- 2" (Width) 3 (Openning) Precision Grounded Vic
- Rotary Axis/ 4th Axis
- Tool Grinder (Taiwan Make)
- (Training Included @Our Works)
