Single Column Desktop Series

Ball Screw

LM Guide

Proximity Sensor

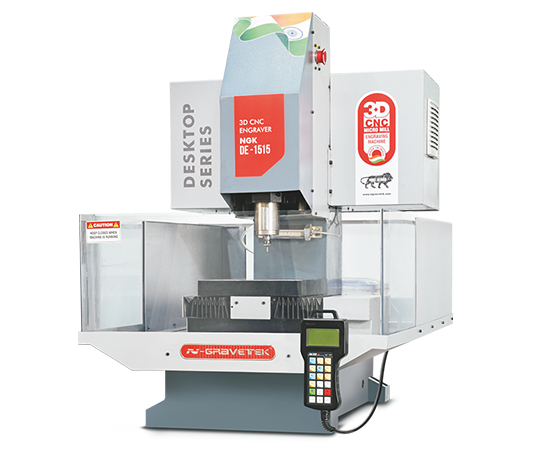

DESKTOP SERIES Machine Highlights

Compact Mini Desktop Micro-Milling Engraving Machine with very less floor space required.
Most economical & powerful CNC engraving machine in our product line
Complete cast iron foundry body with virtually no vibrations which gives better surface finish & better tool life
Time Proven, Sturdy and Versatile Full Digital CNC Precision Micro-Milling/Engraving Machine.
Machine future ready for 4th axis for doing Micro-Milling & Engraving operations on cylindrical work piece
Closed loop control system with possibility to save 6 work origins.
Standalone machine with USB compatibility. No need to connect to PC
DSP based programmable multi-axis simultaneous 3-axis CNC controller
Ball Screw with UM quide-woys enables higher ropids and better productivity
Easy to operate using simple & user-friendly handheld keypad
Compatible with brood range of CAM software's
Very low mochine running cost due to less power consumption & low maintenance.

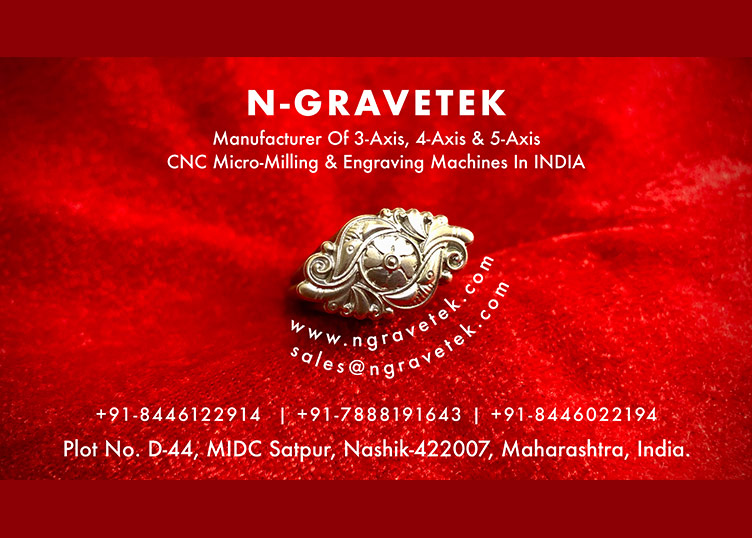

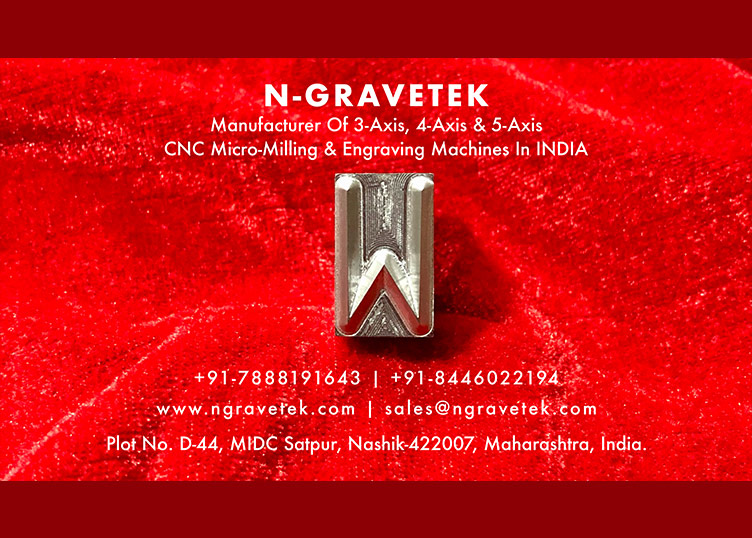

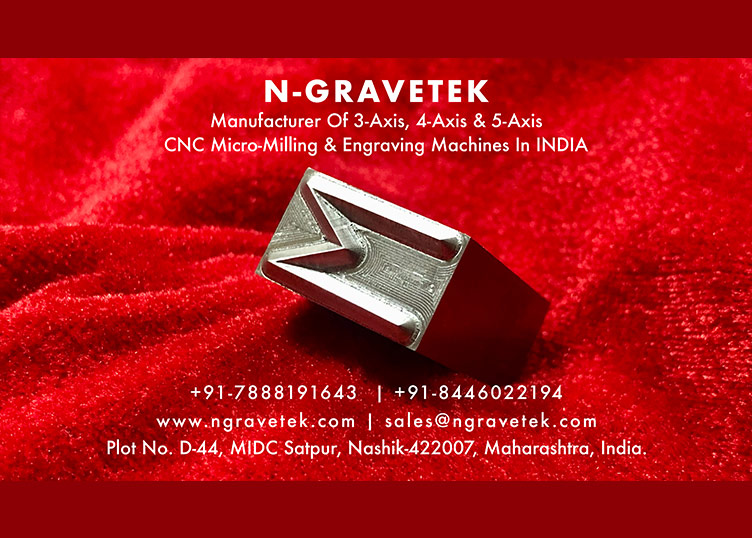

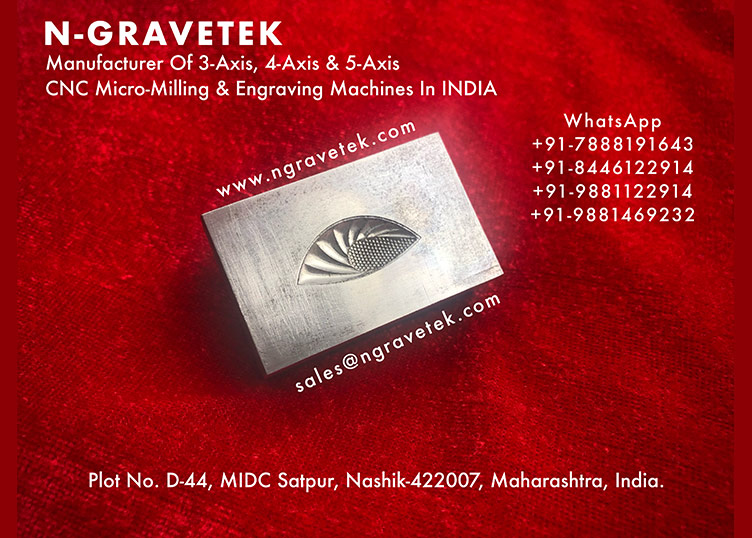

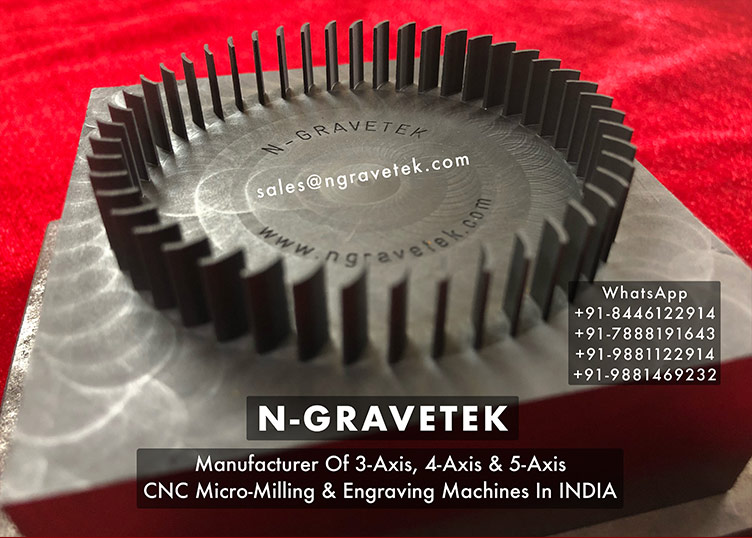

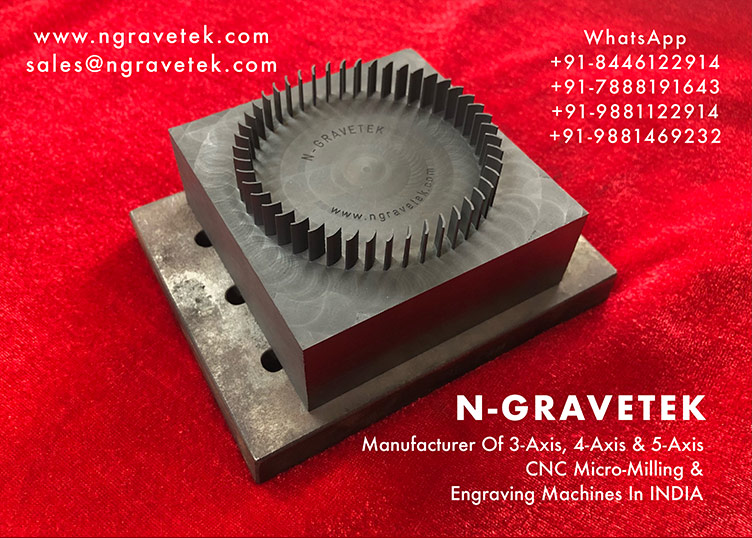

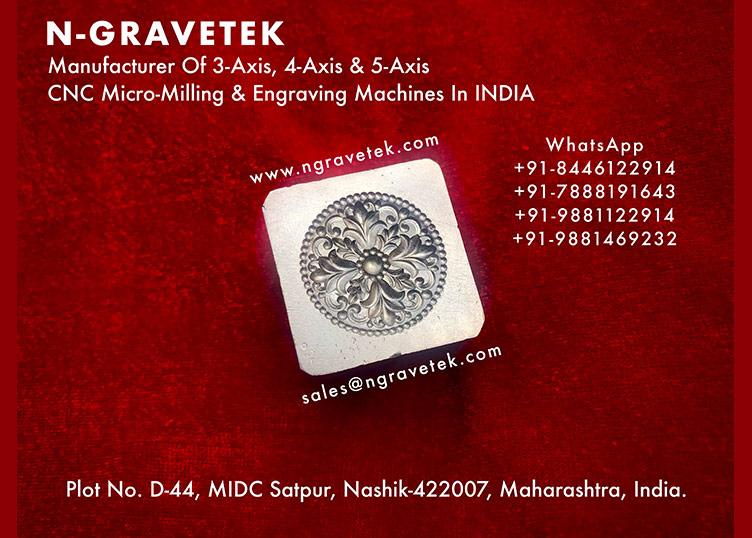

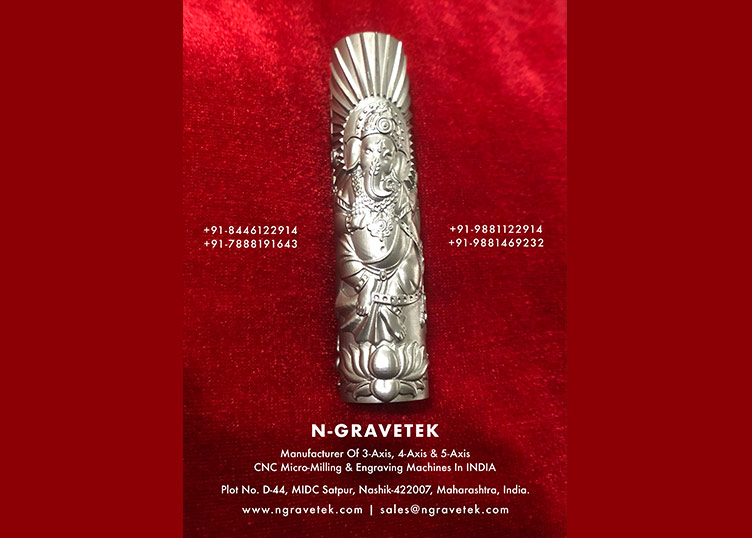

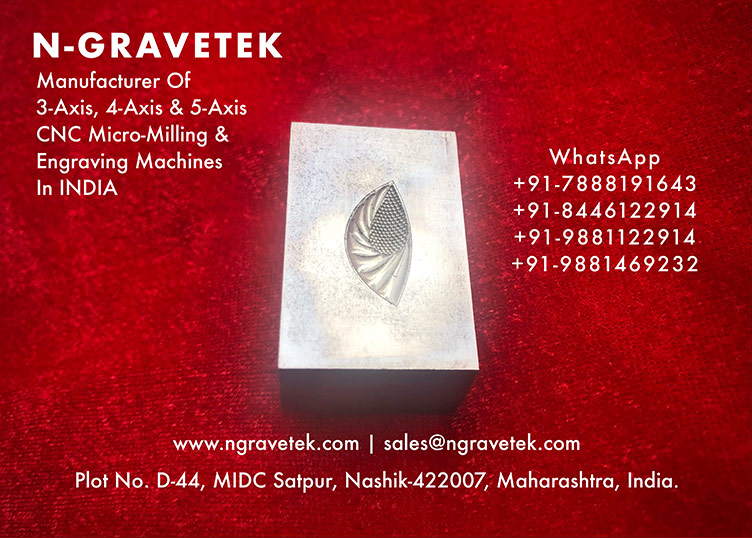

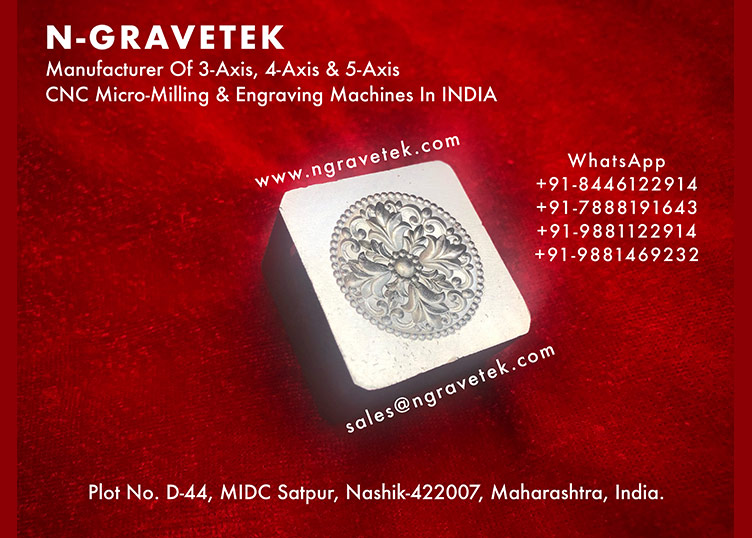

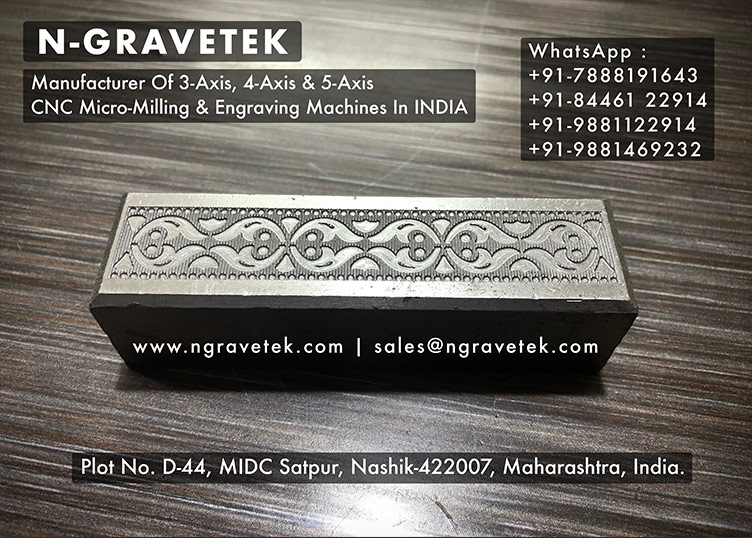

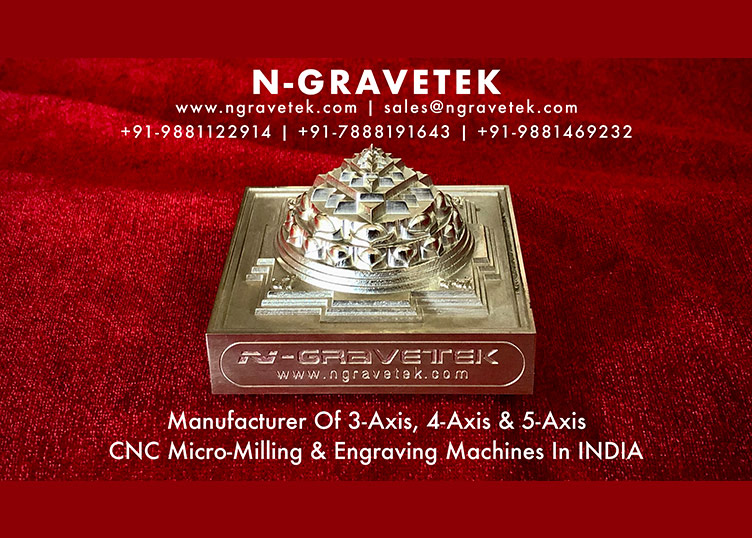

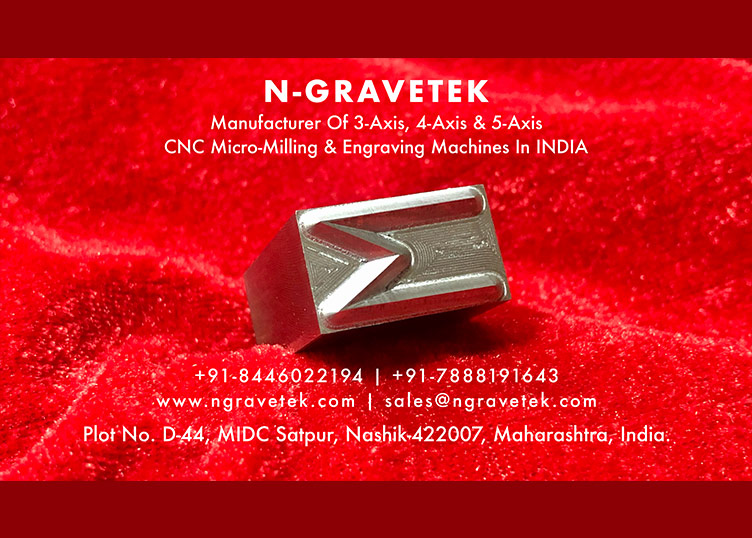

Product Video Technical Specs Sample Images
Download Catalog

Machine Technical Specifications

Description	NGK-DE / DE(S)-1515	NGK-DE / DE(S)-2020	NGK-DE / DE(S)-6020
Working Area – (X) x (Y) x (Z) (mm)	150 (X) x 150 (Y) x 150 (Z)	200 (X) x 200 (Y) x 150 (Z)	600 (X) x 200 (Y) x 150 (Z)
Total Size- Clamping Area in mm	260 (X) x 260 (Y)	310 (X) x 310 (Y)	710 (X) x 310 (Y)
T-Slot Size	M10
T-Slot Centre Distance	54mm	71mm	122.6mm
Engraving Speed	2000 mm/min
Rapid Speed	3000 mm/min
Spindle Speed	40000 RPM
Spindle Power	1.2 KW
Maximum Tool Diameter	6mm (soft Material) & 4mm (Hard material)
Guide System	Linear motion Guide
Drive System	Ball Screw
Motor/Drive	Stepper Motor / Servo motor
Standalone Controller	( DSP ) Digital Signal Processor
Internal Memory	128 MB
Expandable	8 GB
USB Connectivity	YES
Machine Self Zero	YES
User Work Zero	6
Auto Spindle On/Off	YES
Auto Coolant On/Off	YES
Break Point Resume (Tool Breakage)	YES
Power Resume Function	YES
NC File Format	ISO G-Code (Standard)
Accuracy	0.020mm
Repeatability	0.020mm
Resolution	0.015 mm (Stepper Motor) / 0.10 MM (Servo Motor)
Feeding height	0.015 mm (Stepper Motor) / 0.010 MM (Servo Motor)
Safe Weight on Table	60 Kg	80 Kg	120 Kg
Weight of Machine	300 Kg	425 Kg	600 Kg
Floor Space (mm)- (L) x (D) x (H)	1070 x 730 x 1000	1200 x 730 x 1000	1200 x 1200 x 1000

Standard Accessories

Names	Nos
Clamp Set	2 Nos
Spanner (Required Sizes Only)	2 Nos
N-Grayetek Signature 4GB Pen Drive	1 Nos
Collets 4mm	1 Nos

Upgraded Accessories

Spindle Power 2.2KW @ 24000 RPM
PC Based Controller
Suitable PC Required for PC Based Controller
Integrated Embedded System

Optional Accessories

Coolant System
industrial Spindle Chiller
Z-Presetter - Calibrator
2" Width 3" Opening Precision Vice
Stabilizer / 10 min. Power Back UPS
Rotary Axis / 4th Axis / 5th Axis
V-Bit - Engraving Tools
Tool Grinding Machine (Training @ Nashik Works)
